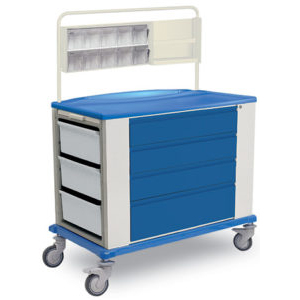

K816361 – CARRELLO MEDIKAR LARGE IN ACCIAO VERNICIATO A 4 CASSETTONI CON SOPRALZO

Categoria:

Descrizione

Technical features:

DIMENSIONS: mm 1150 x 640 x 1600 H

CONSTRUCTION: solid, sturdy, made of plastic ( technopolymer ) and painted steel to obtain maximum lightness and maneuverability .

DESIGN: accurate to the smallest detail .

STRUCTURE: self – supporting, monocoque body .

UPPER PART: wide work top with rims in technopolymer without sharp edges to make it easy to clean and disinfect . Height from ground : mm 1000

PUSH HANDLE: ergonomic, integrated on structure

FRONTAL PART: it is pre – set to house modular drawers, which are entirely made of painted steel . Drawers have no sharp edges and rounded interior . They slide silently thanks to their ball bearing rails . They are equipped with end stoppers and are pre – set for a key central locking system .

DISPENSER: steel tube holding frame supporting no . 2 boxes, composed by no . 5 swinging, pull – out containers in plastic . Complete with no . 2 shelves .

STANDARD DRAWERS:

no . 3 drawers dimensions mm 795 x 485 x 151 H ;

no . 1 drawer dimensions mm 795 x 485 x 228 H .

LEFT SIDE : additional, pull  out worktop in technopolymer ; built – in compartment, complete with three swinging pockets made of technopolymer .

RIGHT SIDE: no . 1 large, double compartment waste bin with tilting lid ; no . 1 bottle holder ; no . 1 built – in compartment with rim entirely made in plastic .

LOCKING SYSTEM: key central locking system ;

WHEELS: no . 4 ball bearings, pivoting, anti – threads wheels diam . mm 125 , two with brake.
